Power supply
400W+

TFX-PFC400W

400W+

‏‏‎

user manual

The TFX-PFC400W power supply is a full range active PFC standard Flex-ATX unit that will fit in most small TFX form-factor cases. Has enough power output and connectors to run systems up to 400 watts, being used for versatile compact computing applications.

  • APEVIA TFX-PFC400W Standard 400W TFX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 400W.
  • Output: +3.3V@12A, +5V@12A, +12V@28A, -12V@0.3A, +5Vsb@2.5A
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing
  • Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)
  • Cooling: Forced Air Ventilation by 1 x 80mm Fan
  • Power cord
  • Retail box

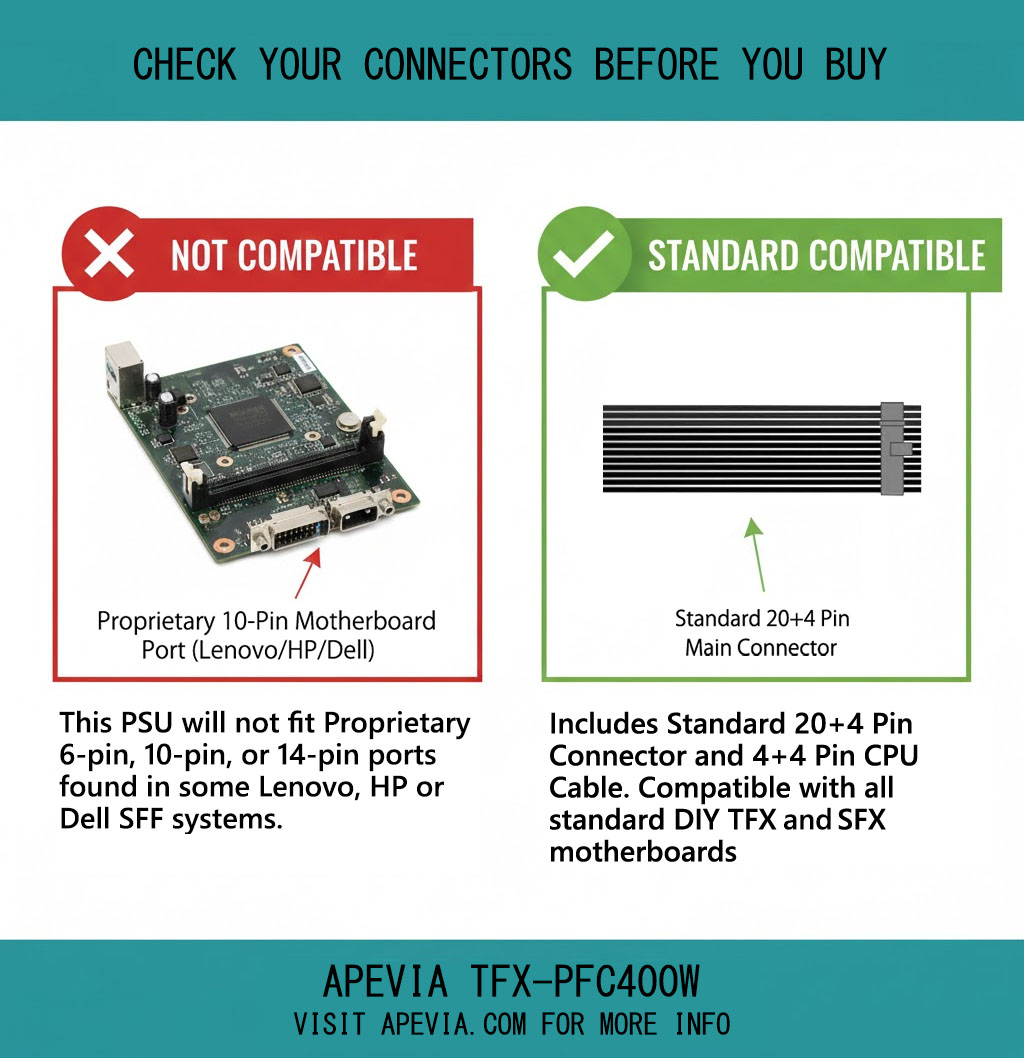

  • 1 x 20 + 4 pin main connector can be used for 20 pin or 24 pin
  • 1 x ATX12V P4+4pin connector can be used as 12V 8pin or 4pin (Removable by pushing out one of the 4pins)
  • 1 x 6+2 PCIE graphics card connector can be used as an 8pin or 6pin (Removable by pushing out the 2pin)
  • 3 x SATA connector
  • 3 x 4 pin peripheral connector
  • IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
Model No.
TFX-PFC400W
Max. Power
400W
Material
Metal
Color
Black
Switches
N/A
Input
Full Range Active PFC 90-264V
Output
+3.3V@12A, +5V@12A, +12V@28A, -12V@0.3A, +5Vsb@2.5A
Connectors
Connectors: 1 x 20+4pin Main Power, 1 x 8pin 12V(P4+4), 2x 6+2 PCIE, 3 x SATA, 3 x 4pin Molex
Cooling
Forced air ventilation by 1 x 80mm fan
Dimension
175.26mm x 83.82mm x 63.5mm (6.9" x 3.3" x 2.5") - L x W x H
Weight
2.1 lbs
Package
N/A
Cu'ft
N/A
