Power supply
600W+

GALAXY650W ATX 3.1 & PCIE 5.1

600W+

Apevia Galaxy 650W 80+ Gold ATX 3.1 Fully Modular Gaming PSU, PCIe 5.1 Ready 12VHPWR Cable, 135mm Silent FDB Fan, Japanese Capacitors, Reliable Power Supply for the latest NVIDIA Graphics Cards

user manual

Apevia's Galaxy series of power supplies is expertly crafted to deliver exceptional gaming performance and outstanding durability, perfectly suited to power up high demanding systems. This gaming power supply is designed to be PCle 5.1 & ATX 3.1 ready and proudly holds an impressive 80+ Gold tested certification, a testament to its efficiency. Its robustness is further fortified with 100% high-quality Japanese electrolytic capacitors, ensuring a dependable power source and remarkable durability. With the latest PCIE 5.0 Gen 5 12VHPWR 12+4 (12pin/16pin) GPU connector, it flawlessly delivers power to advanced PCIe 5.0 high-end graphics cards. The sleek 135mm auto-thermally controlled fan equipped with FDB bearings not only ensures excellent cooling but also prolongs the fan's life span. Emphasizing convenience, the Apevia Galaxy employs a fully modular cable configuration, allowing you to connect only the necessary cables, minimizing clutter and making installation a breeze. Unutilized plugs can be stored for future use, streamlining your build. Additionally, it incorporates Active PFC technology, boasting an impressive 99% power factor correction, significantly improving efficiency and leading to energy savings. Eliminating the need for manual voltage adjustments, this power supply automatically adapts between 110V and 230V depending on the connected power grid. Moreover, the power supply features an elegant imprinted Apevia logo and a distinctive vent design, exuding a high-end appearance.

  • 650W Power & 135mm FDB (Fluid Dynamic Bearing) auto thermally controlled black fan for outstanding cooling & longer fan life span.

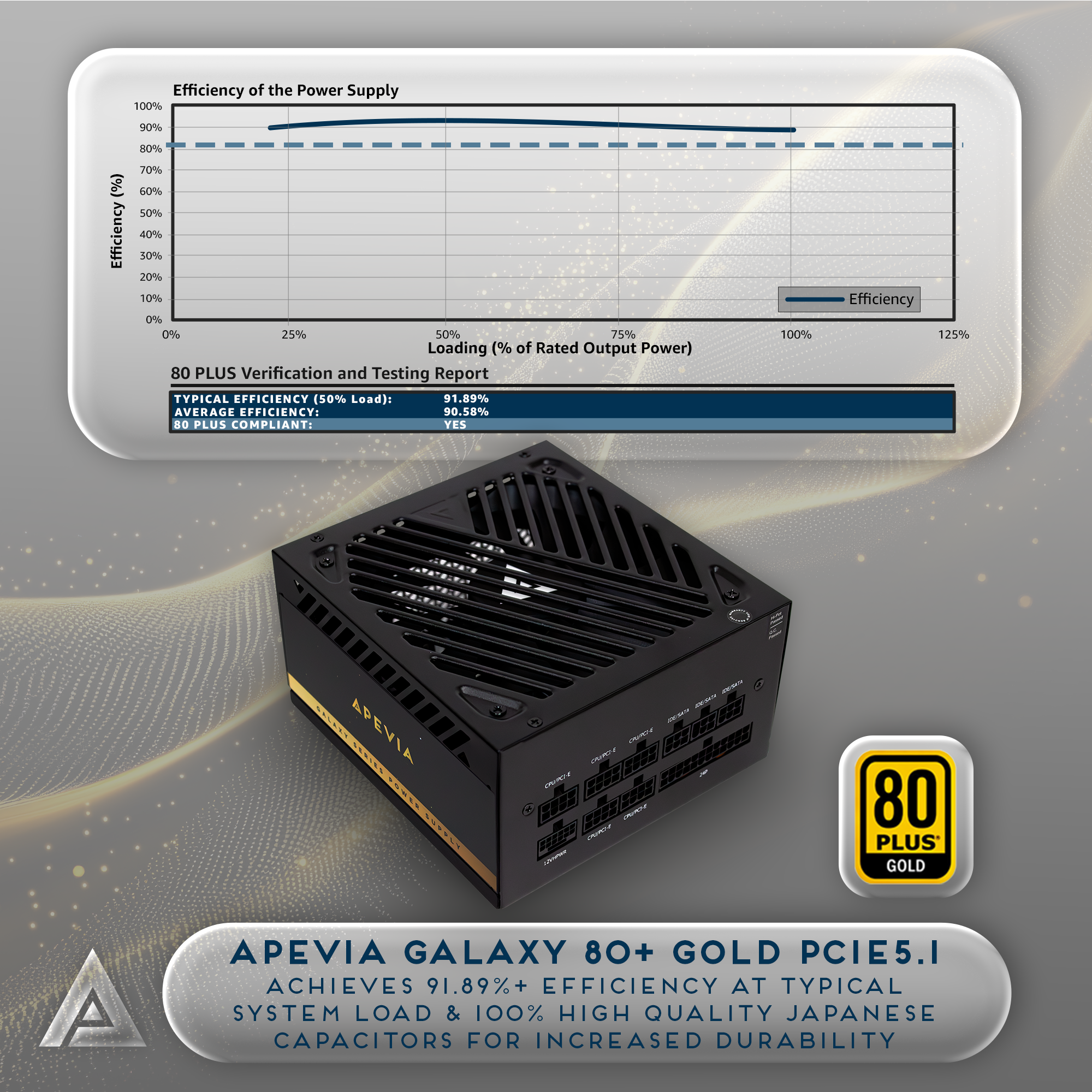

  • 80+ Gold certified
  • Fully modular power supply design (Ability to connect only the essential cables)
  • ATX 3.1 + PCIE 5.1 Ready, includes Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.1 graphics cards
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing (100% High quality Japanese capacitors)
  • 20 + 4 pin main connector can be used for 20 pin or 24 pin
  • 1x Modular PCle 5.1 / Gen 5 12VHPWR (12 pin+4 pin) GPU connector
  • Each cable is removable
  • Cables and accessories

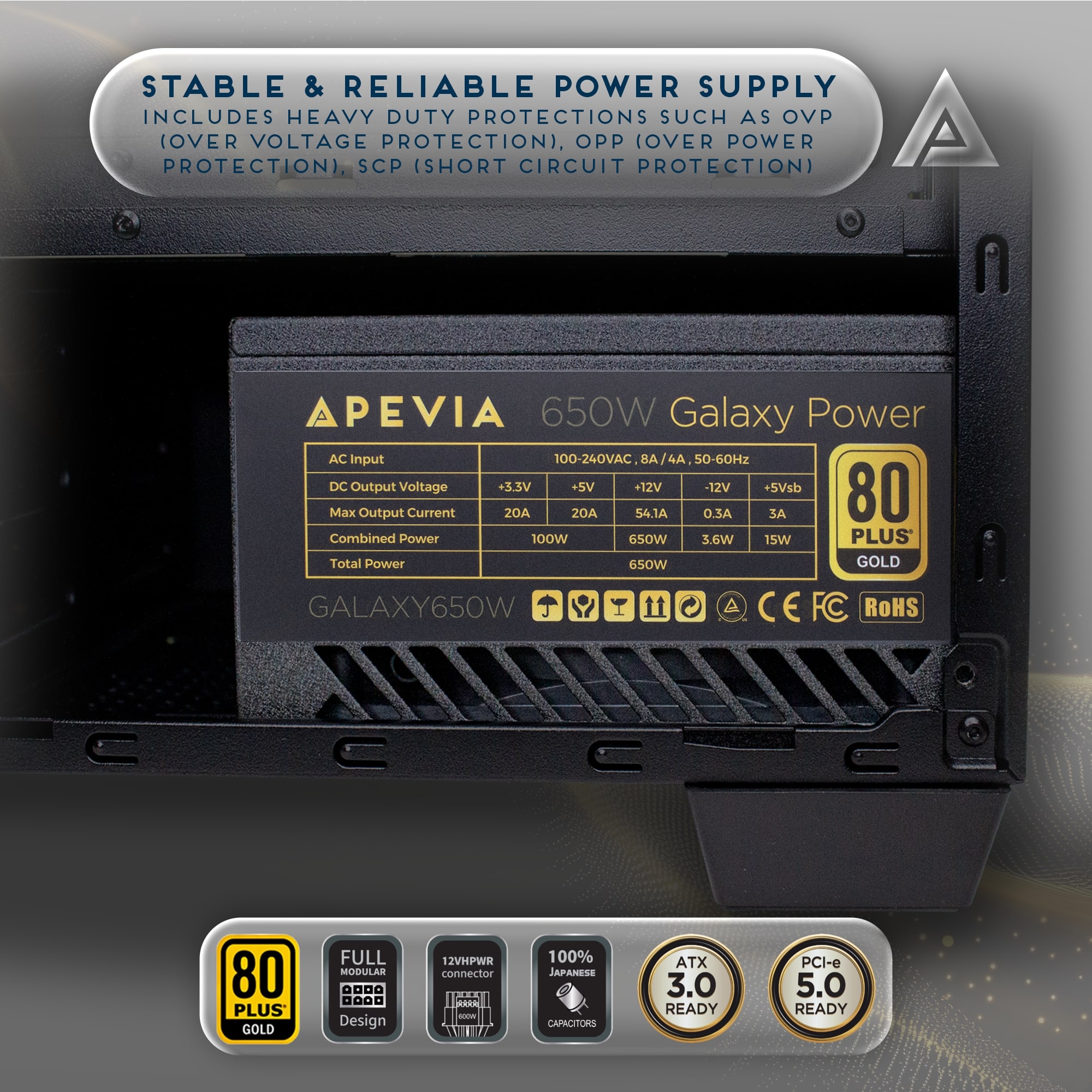

  • Complete heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Model No.
GALAXY650W ATX 3.1 PCIE 5.1
Max. Power
650W
Material
Metal
Color
Black sandblasting coated case
Switches
N/A
Input
Voltage ranges:100-240V / Input freguency:50-60Hz / Input current:8A for 100VAC, 4A for 240VAC
Output
+3.3V=20A / +5V=20A / +12V=54.1A / -12V=0.3A / +5VSB=3A
Connectors

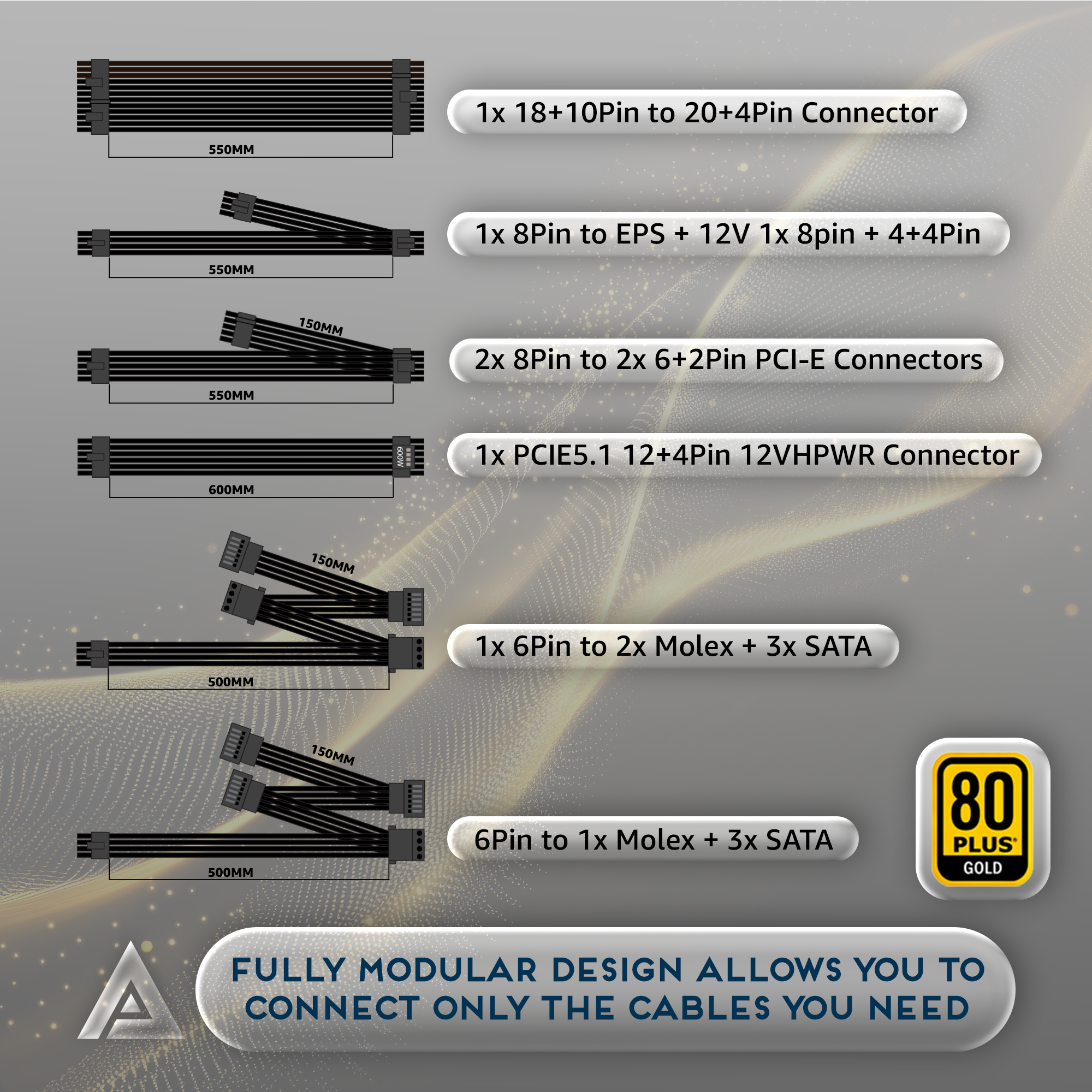

1 x (18+10) 28Pin to (20+4) 24Pin Main Power, 1x 8Pin to (4+4) 8Pin + (4+4) 8Pin EPS 12V, 2x 8Pin to 2x (6+2) 8Pin PCI Express, 1x PCIE5.0 (12+4) 16Pin 12VHPWR, 1x 6Pin to 2x Molex + 2x SATA, 1x 6Pin to 1x Molex + 3x SATA
Cooling
Forced air ventilation by 1 x 135mm FDB (Fluid Dynamic Bearing) Auto Thermally Controlled Black Fan
Dimension
250 x 205 x 100mm (9.84" × 8.07" × 3.94") - L x W x H
Weight
4.52 lbs
Package
10 pcs/carton
Cu'ft
0.18 (per box)
