Power supply
700W+

ATX-SP700W

700W+

Apevia 700W Spirit series power supply

user manual

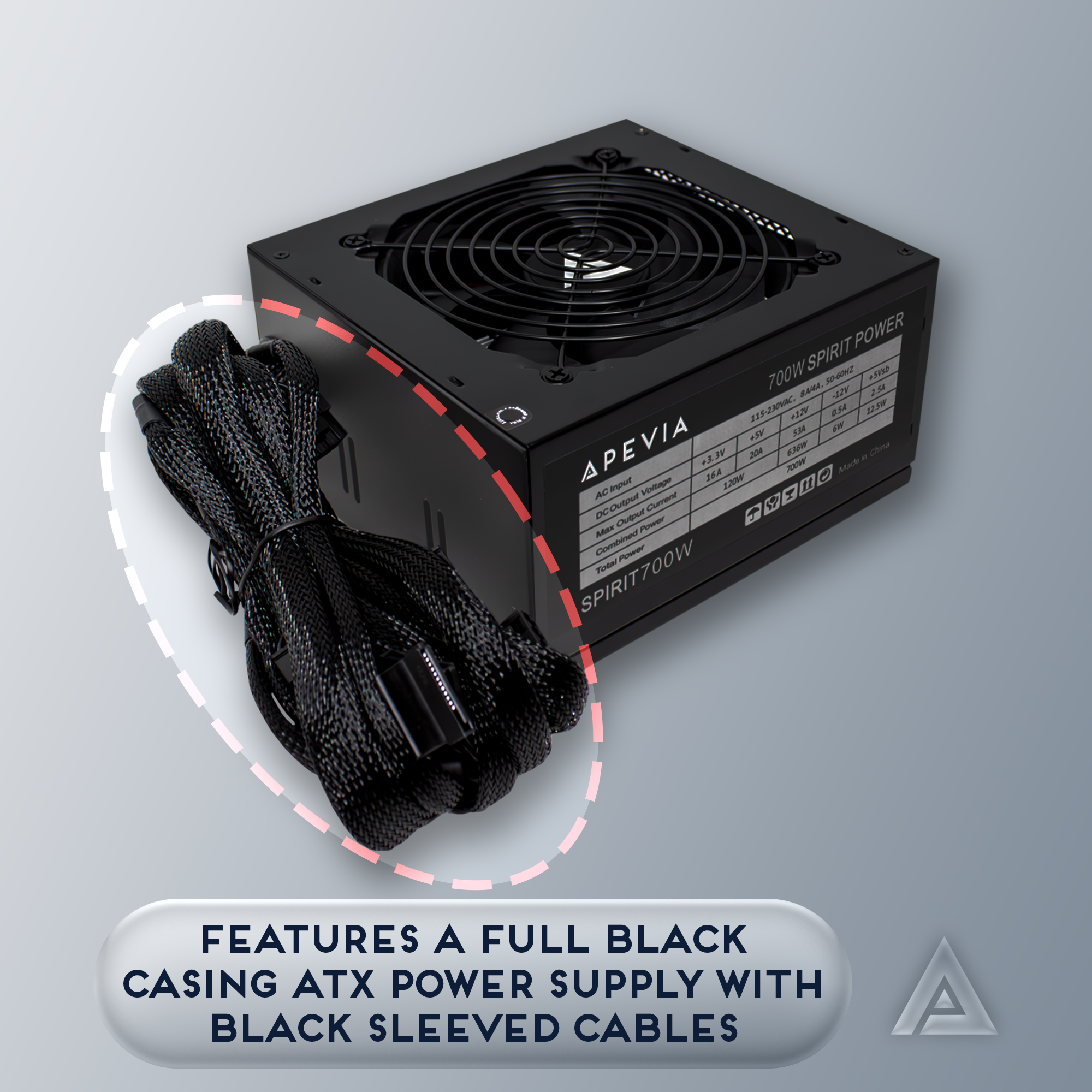

Apevia’s Spirit line of power supplies bring form and function to your system, providing high efficiency with a basic black look that fits ATX computer builds. It supports the modern 12v2.3 power standard with a single 12V rail setup. Boasting a silent 135mm black fan, it keeps everything inside the system cool. Comes with enough cables to connect all the devices you might need. The ATX-SP700W power supply is perfect for mid-range builds for both business and gaming use.

  • 700W Power with 13.5cm black fan
  • Supports single 12v output for higher power usage
  • Supports SLI, Crossfire & Haswell
  • Supports Dual/Quad/Multi Core CPUs
  • Supports ATX 12v 2.3 version
  • Low noise auto-thermally control 135mm fan
Model No.
ATX-SP700W
Max. Power
700W
Material
Metal
Color
Black sandblasting coated case
Switches
Additional power rocker switch 115/230 Volt selector switch
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:8A for 115VAC, 4A for 230VAC
Output
+3.3V=16A / +5V=20A / +12V=53A / -12V=0.5A / +5VSB=2.5A
Connectors

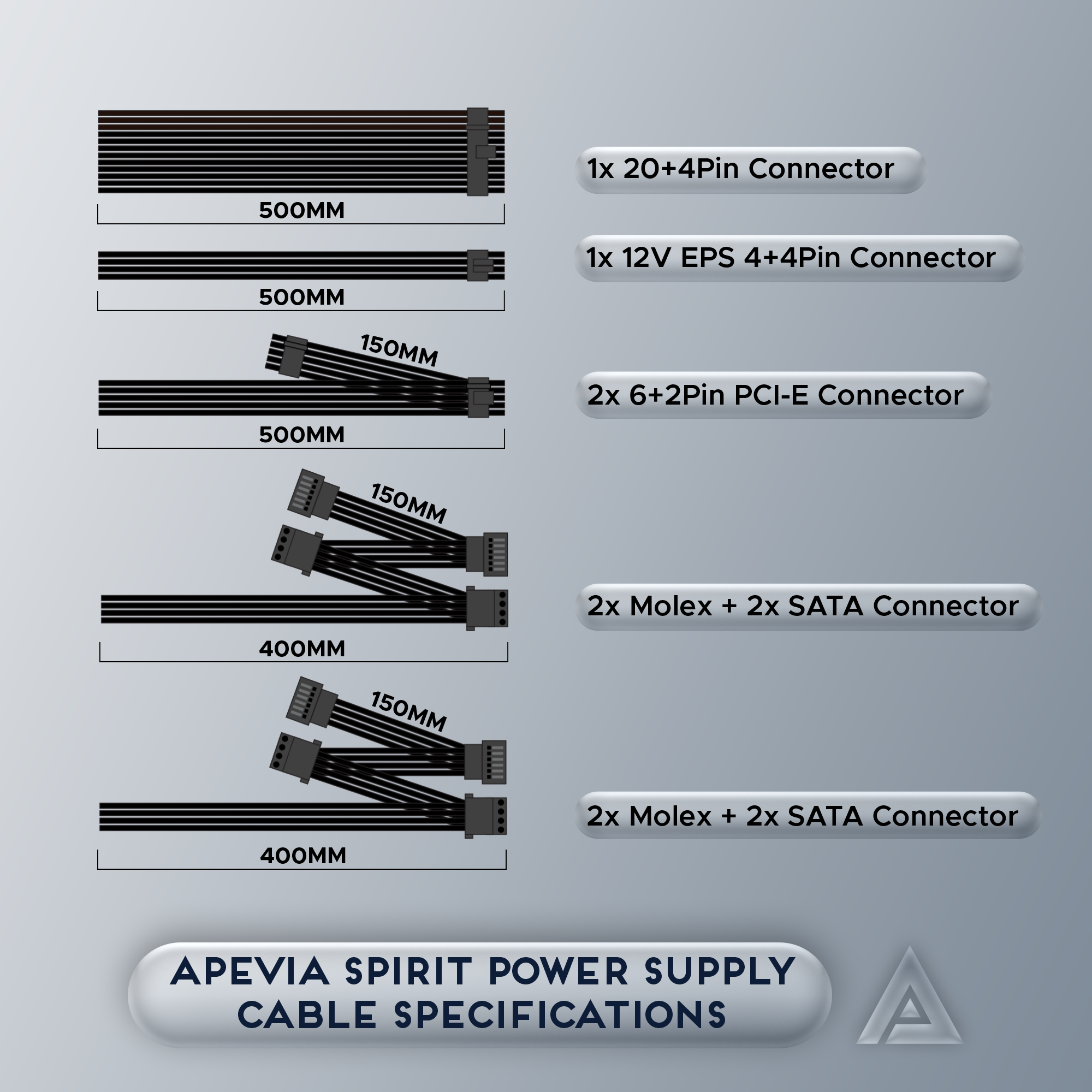

1 x 20/24pin Main Power / 1 x 4/8 pin + 12V and EPS / 4 x SATA / 4 x Peripheral / 1 x Floppy / 2 x 6+2pin PCI Express
Cooling

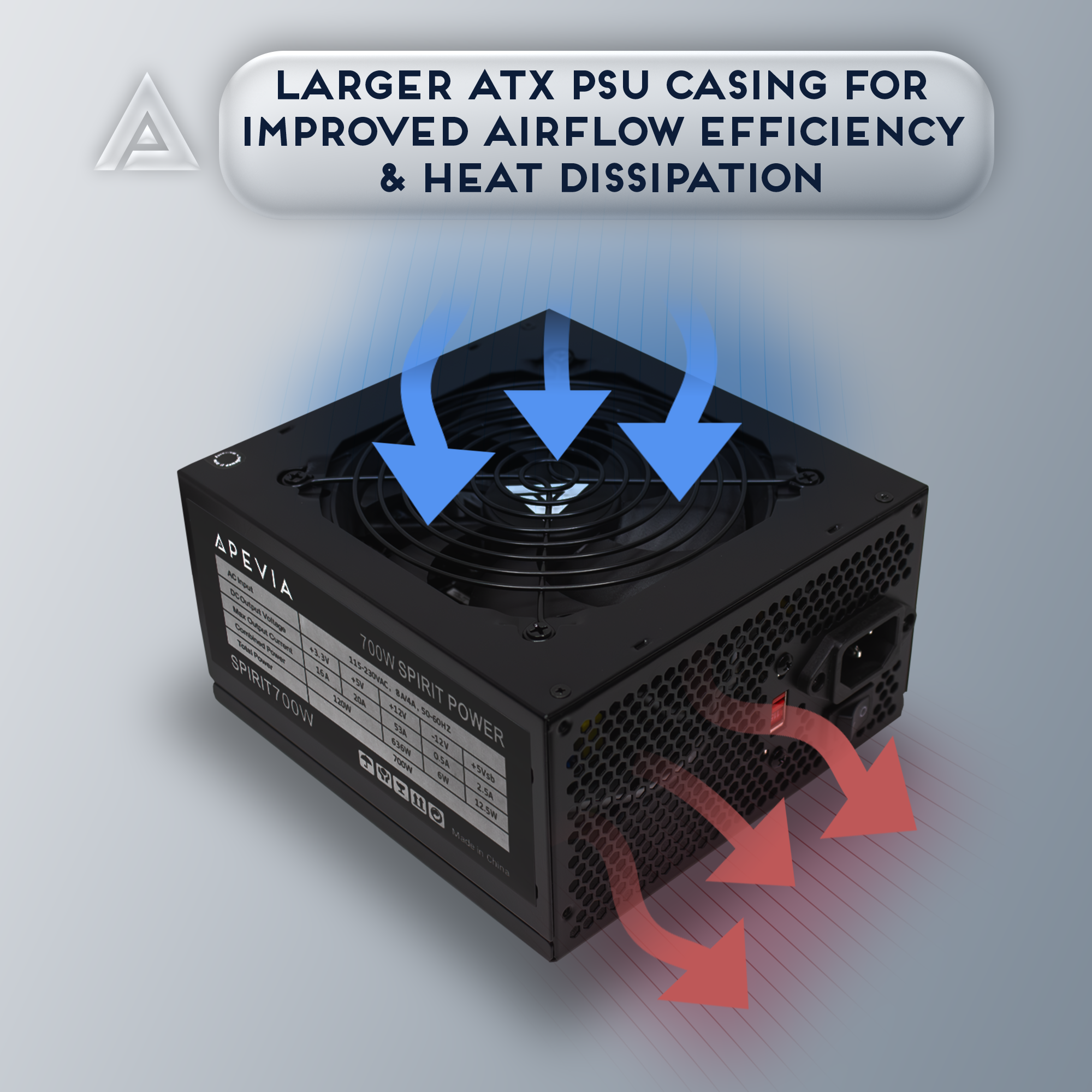

Forced air ventilation by 1 x 135mm black fan
Dimension
150mm x 160mm x 85mm (5.9" x 6.3" x 3.4") - L x W x H
Weight
4 lbs
Package
10 pcs/carton
Cu'ft
1.83 (per carton)
