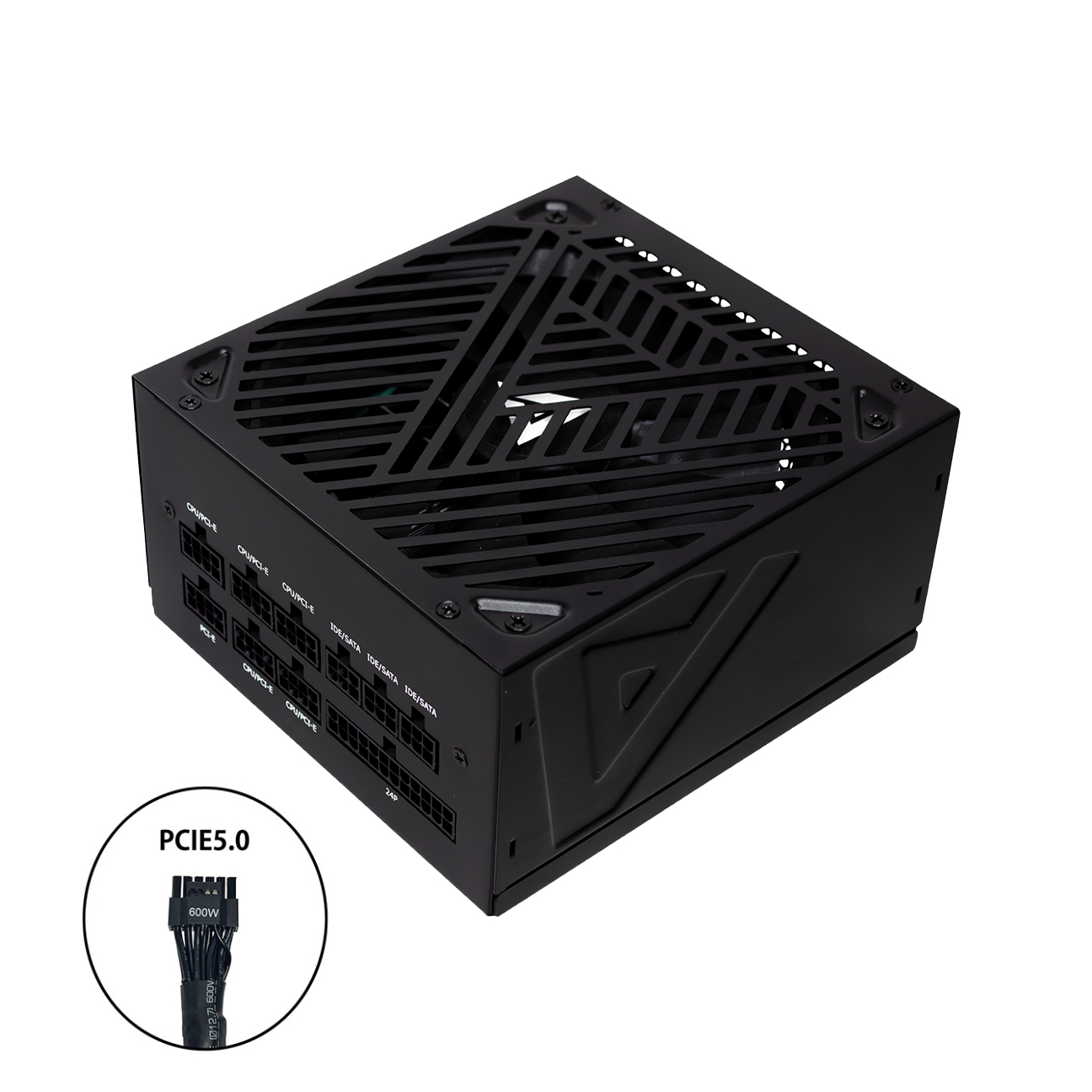

Apevia Soul Series ATX-SL1200W 1200W Power Supply delivers reliable performance, advanced safety features, and efficient power management, making it an excellent choice for high-performance gaming PCs and custom builds. Its fully modular design lets you connect only the cables you need, improving airflow and making cable management simple and clean.

This PSU supports ATX 3.1 and PCIe 5.1, including a 16-pin PCIe cable capable of delivering up to 600W to the latest NVIDIA GeForce RTX 50 Series graphics cards. Built with Active PFC and a full bridge 12V synchronous rectification system, it provides stable, energy-efficient power. The DC-to-DC converter design ensures fast response, better system stability, and maximizes +12V rail output for modern CPUs and GPUs. With ample +12V power and support for 6-pin and 8-pin PCIe connectors, it’s compatible with multi-CPU setups and a wide range of GPU platforms.

Cooling is handled by a quiet 140mm thermally controlled fan, which adjusts its speed automatically based on system load. This keeps your system running cool without generating unnecessary noise during long gaming sessions.

The Soul 1200W also includes built-in protections, including Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP), so your components remain safe under all conditions.

Dimensions for this PSU is 150mm x 158mm x 86mm (5.9" x 6.2" x 3.4"), it fits easily in standard ATX cases, is RoHS compliant, and has long-term reliability.

• 1200W Power with 140mm black fan
• ATX 3.1 and PCIe 5.1 compatible delivering up to 600W to the latest NVIDIA GeForce Series graphics cards
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• Fully modular cable design
• High quality components and housing
• 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 2 x 8pin to 4+4pin ATX 12V connector
• 6 x 6+2 Pin PCI - Express
• 1x 12pin to PCIE5.1 12+4Pin 12VHPWR
• 5 x SATA connector
• 2 x 4 pin peripheral connector
• Each cable is removable
• Cables and accessories
• Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

‍IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

‍IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.

‍IMPORTANT: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.

‍IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector

‍
