Power supply
1000W+

ATX-PR1300W ATX 3.1 + PCIE 5.1

1000W+

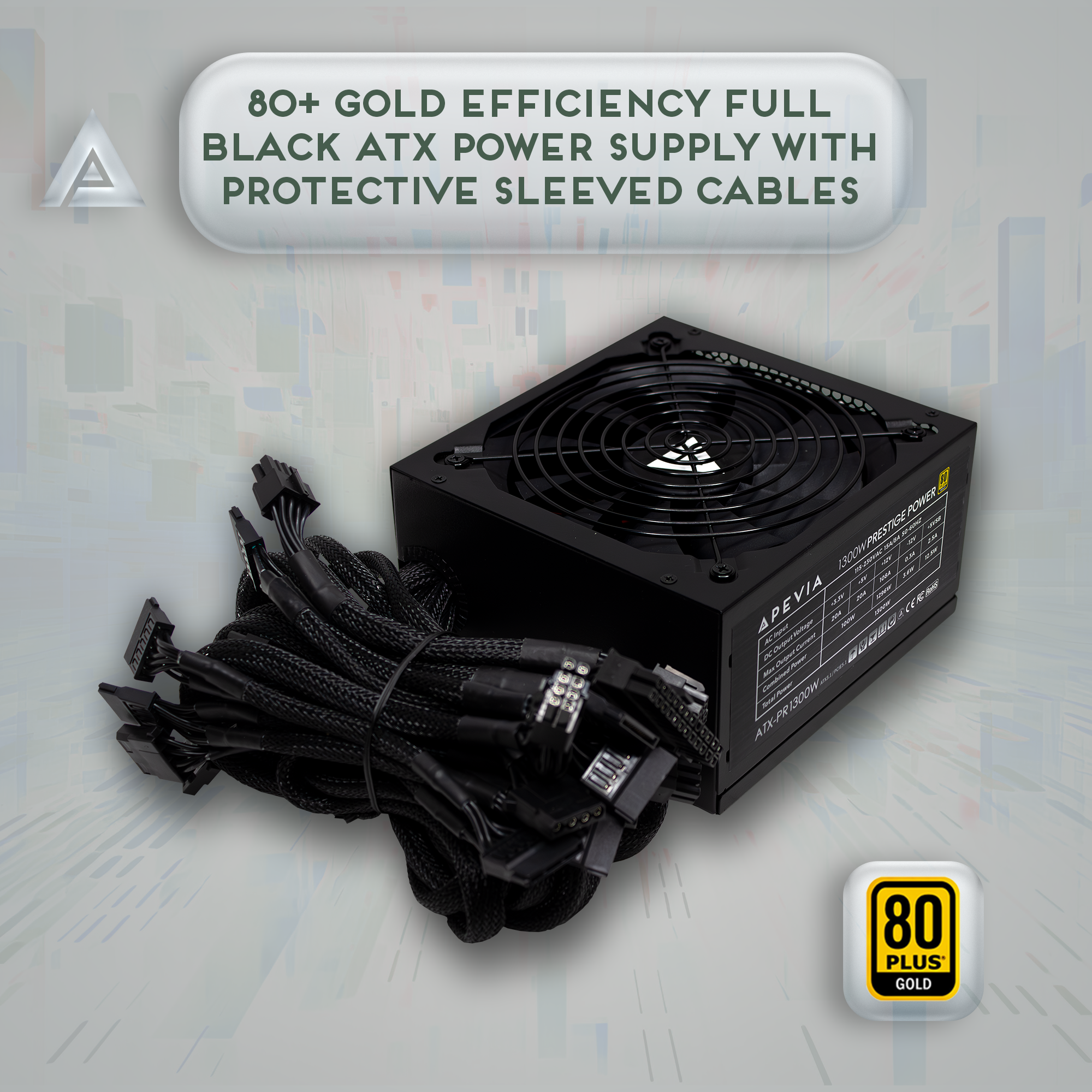

Apevia ATX-PR1300W Prestige 1300W, 80+ Gold Certified, ATX 3.0 + 3.1 Ready, PCIe 5.1 / 12VHPWR Connector, ATX Active PFC, DC to DC Converter Design, 135mm Silent Fan, RoHS Compliance, Gaming Power Supply

user manual

Apevia’s Prestige PCIE 5.0 / 5.1 series line of power supplies brings great power and efficiency to your computer system. 80+ Gold certified, and designed for elegant form and function, they bring it to life. This power supply includes the PCle 5.1 / ATX 3.1 12VHPWR 12+4 (12pin/16pin) PSU connector to deliver power to the most latest & advanced PCIe 5.1 NVIDIA GeForce RTX high end graphics cards. Supporting the 12v2.3 standard and single rail setup, it’s updated for modern platforms. Boasting a 135mm silent black fan, it keeps everything inside cool. The Prestige line also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. RoHS compliance. For safety, do not overload, abuse or modify the power supply unit. Use of this unit for Bitcoin Mining is not suggested since it will shorten the life and cause failures of power supply. NOTE: Power supply will not turn out if you do not connect 20/24 pin connector into motherboard and the power cord into the wall outlet

  • 1300W Power with 13.5cm black fan
  • 80+ Gold & ROHS certified
  • PCle 5.1 / Gen 5 12VHPWR PSU connector to deliver power to the most advanced NVIDIA PCIe 5.1 graphics cards
  • ATX 3.1 Ready
  • Ample +12 V Output, enhanced +12 V current capability broadens utilization possibilities.
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing
  • Universal AC input by active PFC (99%PF Typical)
  • Package contents
  • Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Model No.
ATX-PR1300W PCIE5
Max. Power
1300W
Material
Metal
Color
Cosmic black casing
Switches
N/A
Input
Voltage ranges: 115–230V / Input frequency: 50–60Hz / Input current: 15A for 115VAC, 8A for 230VAC
Output
+3.3V=20A / +5V=20A / +12V=108A / -12V=0.3A / +5VSB=2.5A
Connectors

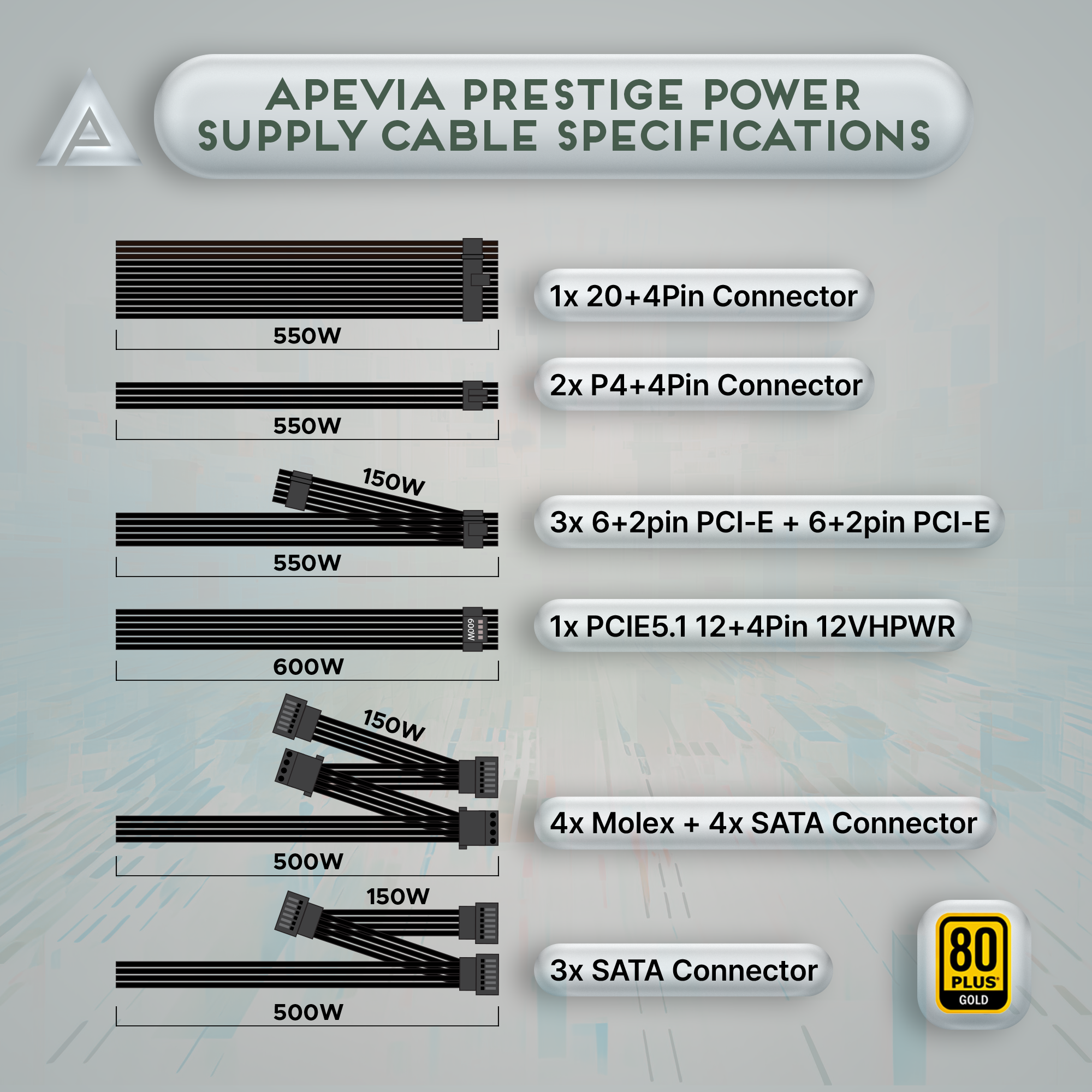

1 x 20/24pin Main Power, 2 x 4+4pin 12V (direct line), 1 x PCIe 5.1 12VHPWR 12+4pin (12pin/16pin), 3 x PCI 6+2pin + PCI 6+2 pin (direct line), 7 x SATA, 4 x Molex
Cooling

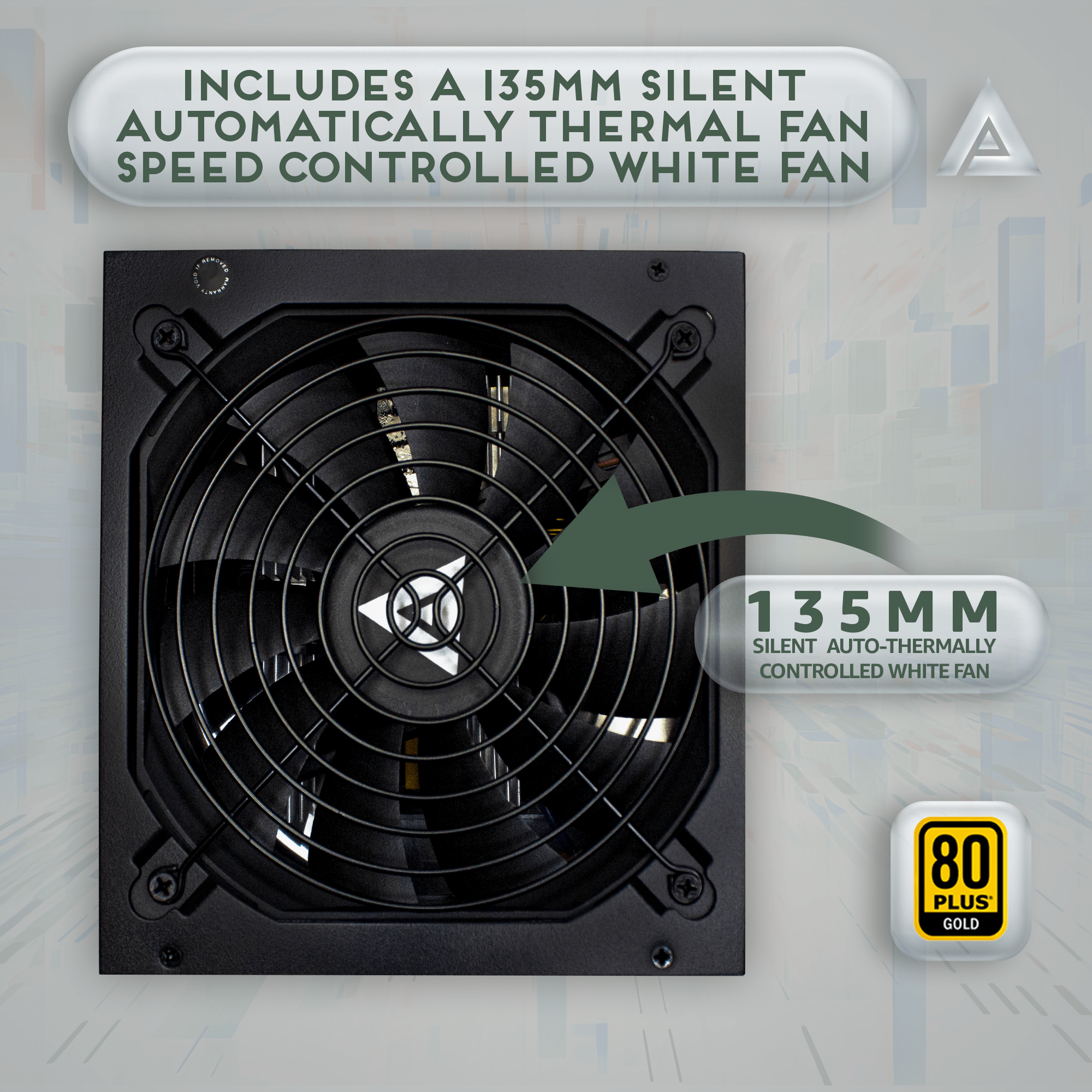

Forced air ventilation by 1 x 135mm black fan
Dimension
158mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
Weight
6.28 lbs
Package
6 pcs/carton
Cu'ft
1.57 (per carton)
