chassis
Mid Tower
Guardian-M

Guardian-M-BK

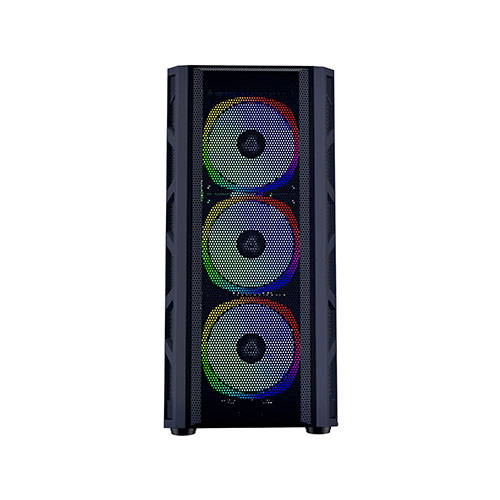

APEVIA Guardian Metal Case w/ 1 x Tempered Glass Window, 1 x Mesh Front Panel & 4 RGB Fans - Black

Apevia Guardian-M mid tower with 1 x tempered glass window, 1 x mesh front panel, 2 x vertical graphics card PCI-E slots, top USB3.0/USB2.0/audio ports, 4 RGB fans, black body

user manual

Apevia’s Guardian line of computer cases brings forth both function and aesthetics to your PC computer. With a clear tempered glass front panel, it displays four of our vibrant RGB fans; three in the front and one in the rear. These fans glow bright with both an inner as well as an outer RGB ring, and come with 16 color modes which can be controlled by the minimalist LED button on the top. The top panel houses two USB2.0, one USB3.0 and audio jacks for the use of external devices. The Guardian-M includes a mesh front panel for users who enjoy increased airflow to their PC components. This case also comes with a full size tempered glass side panel for easy viewing of your internal setup. It can support video cards up to 370mm in length without any hassle as well as vertical graphics card mounting capability with the vertical graphics card PCI-E slots. Show off this amazing case, both in style and air flow as the front panel has 12 total air vents allowing cool air to enter smoothly.

  • Modern metal mid tower with left-side & front tempered glass window
  • Room for up to 6 x 120mm fans or 360mm / 240mm radiator option in the front.
  • Top panel comes with 2 x USB 2.0, 1 x USB 3.0, and HD Audio jacks
  • Can fit expansion cards up to 370mm in length and CPU coolers up to 165mm in height
  • Room for up to 2 x 2.5" hard drives and 3 x 3.5" hard drives
  • Plenty of room on the back side to hide and route cables
  • Play through 16 lighting modes via top I/O panel RGB light switch button. 30 total play-through options include: RGB, Breathing, Single Color, Light off.
  • Packaging box
  • 12 total air vents on the front panel allowing cool air to enter smoothly
  • 2 x Vertical Graphics Card PCI-E Slots option for vertical graphics card mounting
  • Fans are proprietary to this case. If you wish to purchase more, feel free to contact us.
Model No.
Guardian-M-BK
Case Material
Metal
Color
BLACK (BK)
Main board
Standard ATX / Micro ATX / ITX
Window
Yes
Power Supply
N/A
Drive Space
3x3.5" (hidden) / 2x2.5" (hidden)
Motherboard size
up to 11" x 12"
Expansion Slots
7
Front Panel Switch
Power / Fan LED
Front Access Ports
1 x USB 3.0, 2 x USB 2.0, 2 x HD Audio
Cooling Fan Space
Up to 6 x case fans: 3 x 120mm RGB fan (included) - front / 2 x 120mm fan - top (optional) / 1 x 120mm RGB fan - rear (included)
Video Card Length
Up to 370mm
CPU Cooler Height
Up to 6.50"
Front Thermometer
N/A
Front Fan Controller
N/A
Led Display
Power / HDD
Product Weight
13.6 lbs
Product Dimensions(DxWxH)
16.5" x 8.26" x 17.7"
Cu'ft
1.40'
