Cooling
120mm RGB
Lucid Series

LC412L-RGB

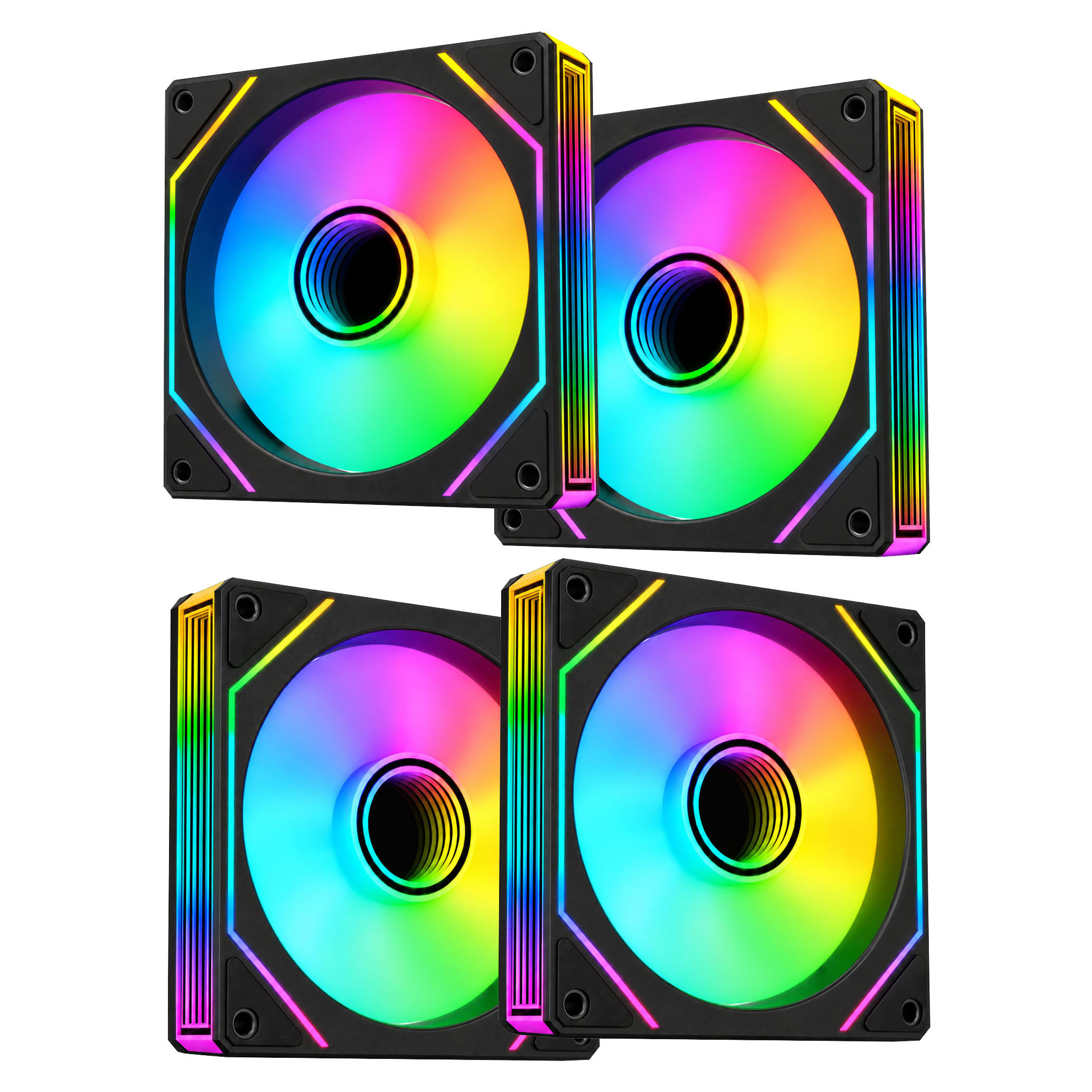

Apevia Lucid LC412L-RGB 120mm ARGB PWM Black Infinity Mirror Fan, Daisy-Chain Connectors 4-Pack

Upgrade your system with the Apevia LC412L-RGB LUCID 120mm PWM ARGB Infinity Mirror Fan 4-Pack. Each fan combines a black frame with translucent white 9-blade fan blades, PWM cooling control, and 5V addressable RGB lighting to deliver a clean, customizable appearance for gaming PCs and workstation builds. The fans operate from 800 to 1800 ±10% RPM and deliver up to 68 CFM of airflow with up to 1.85 mmH₂O of static pressure. Connect the standard 4-pin PWM cable to a compatible motherboard fan header to allow the motherboard to manage fan speed according to its configured temperature settings. Each fan includes 24 ARGB LEDs (8 inner-ring LEDs plus 16 outer-ring LEDs) and a 5V 3-pin ARGB connection for motherboard lighting synchronization. Built-in PWM and ARGB daisy-chain connectors simplify multi-fan installation while helping reduce cable clutter. Hydraulic bearings support quiet, dependable operation for everyday PC cooling.

user manual

Infinity Mirror Lighting: Dual-sided infinity mirror rings extend across the front and left and right sides of each fan, creating a continuous tunnel of light and depth from multiple viewing angles. The layered mirror effect enhances the 24 ARGB LEDs with vivid reflections, adding a dynamic visual element to any build.

PWM Cooling Performance: Each 120mm fan operates from 800 to 1800 ±10% RPM through a standard 4-pin PWM connection. Connect the fan to a compatible motherboard PWM header for automatic speed adjustment based on your system’s temperature-control settings.

Balanced Airflow and Static Pressure: Delivers up to 68 CFM of airflow and 1.85 mmH₂O of static pressure to help remove heat from your PC case. Suitable for case ventilation, CPU air coolers, and light-to-moderate radiator cooling applications.

5V ARGB Motherboard Sync: Each fan features 24 addressable RGB LEDs: 8 LEDs in the inner ring and 16 LEDs in the outer ring. Translucent white 9-blade fan blades help create vivid, diffused lighting. Synchronize lighting effects through a compatible 5V 3-pin ARGB motherboard header.*

Daisy-Chain Ready: Integrated 4-pin PWM and 5V 3-pin ARGB male/female pass-through connectors allow multiple fans to be connected in series for cleaner cable management and simplified installation. Each black flat ribbon cable has a 500 mm lead length, with daisy-chain connectors positioned approximately 100 mm apart.

Quiet and Reliable: Hydraulic bearing construction helps provide smooth operation and a rated bearing life of up to 50,000 hours. Operating noise is approximately 16–30 dBA for a balanced combination of cooling performance and quiet operation.

Model No.
LC412L-RGB
Fan Speed
800–1800 ±10% RPM
Air Power
12 VDC
Noise Level
16–30 dBA
Operation Voltage Range
9 VDC ~ 13.5 VDC
Start-up Voltage
9 VDC
Rated Voltage
12 VDC
Rated Current
0.20 A
Lock Rotor Current
0.21 A
Air Flow
22–68 CFM
Static Air Pressure
0.35–1.85 mmH₂O
Connector
3pin ARGB / 4pin PWM
Life Expectancy
50,000 hours
Packing
Retail, 12 pcs/carton
Weight
15.43
Cu'ft
0.083
