APEVIA CM1012L-WH Cosmos 120mm Case Fan, White LED, Ultra Silent, 10 Pack

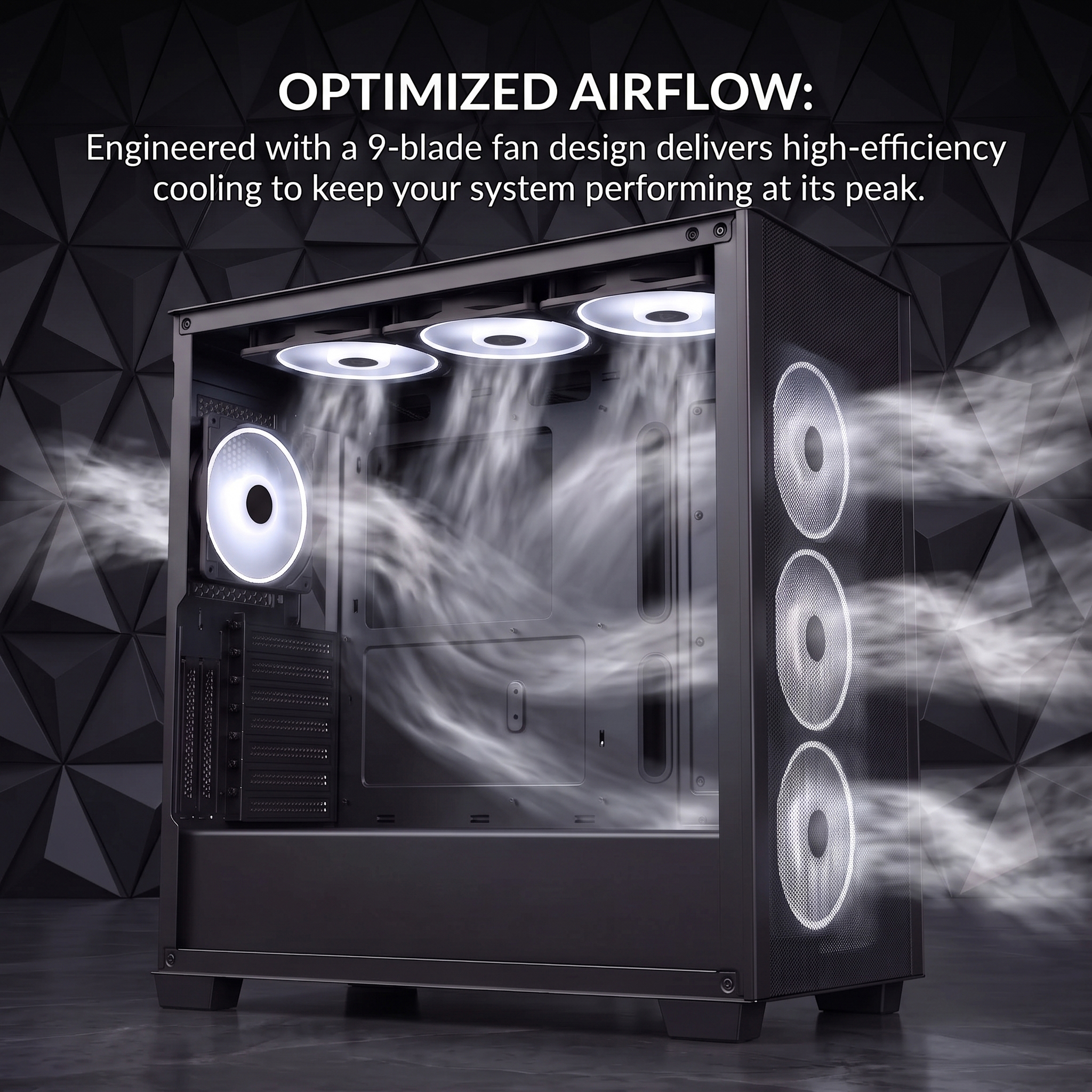

Give your desktop a clean white lighting accent while supporting everyday airflow with the APEVIA CM1012L-WH Cosmos 120 mm case fan set. Each fan combines a black frame, a white 9-blade impeller, and 12 solid white LEDs for a crisp appearance that complements gaming and custom PC builds. For installation flexibility, the fans use a 3-pin motherboard connector and include 4-pin Molex male/female daisy-chain connectors. The 600 mm lead helps with cable routing, while the Molex connectors are approximately 100 mm apart for convenient multi-fan connections. Hydraulic bearings and anti-vibration rubber pads at all four corners help minimize vibration transfer to the chassis for quieter operation. Each fan operates at 1200 +/- 10% RPM, provides up to 50 CFM airflow, and is rated at 20 dBA.

user manual

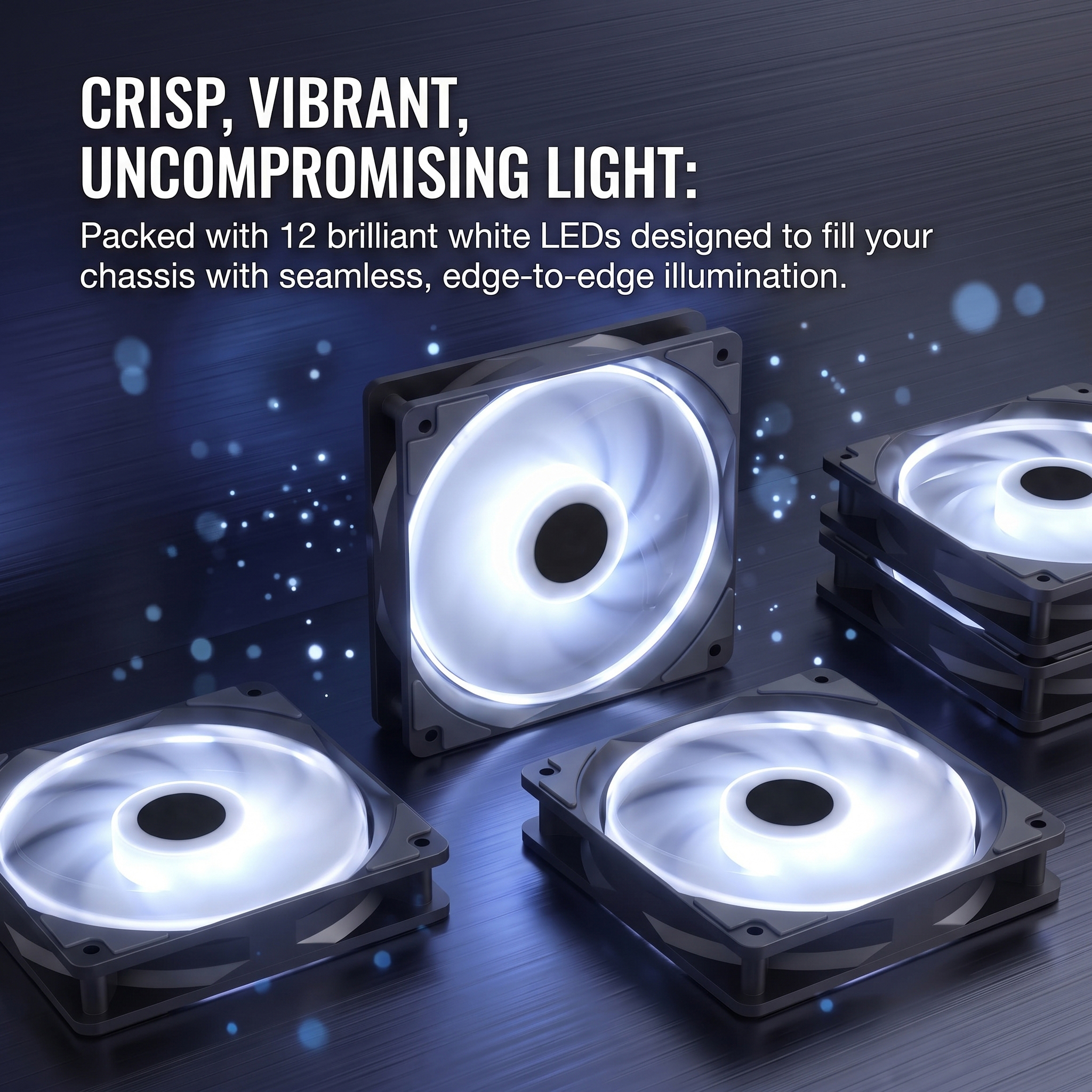

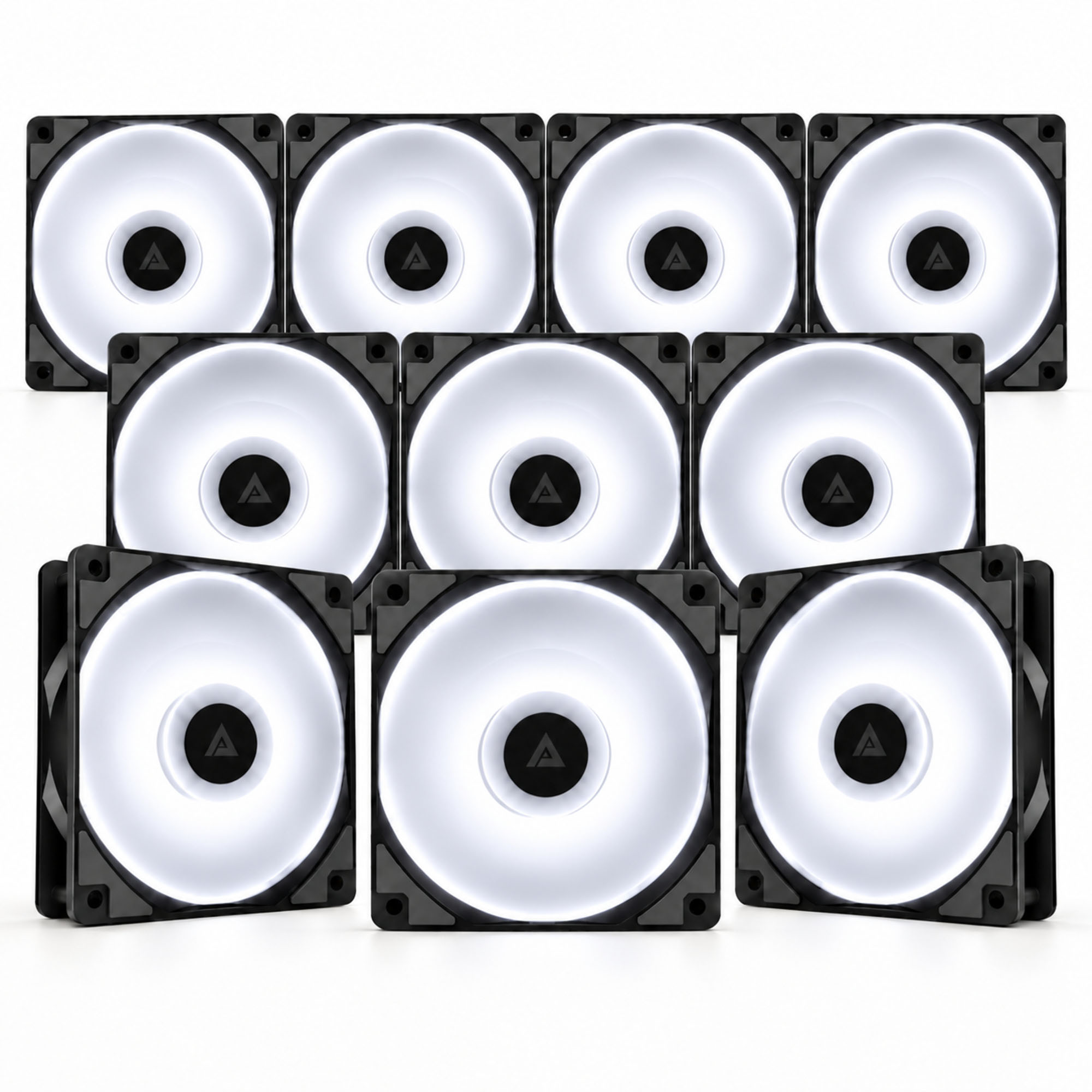

WHITE LED PC CASE FANS - 10 PACK: Ten 120 mm cooling fans with 12 solid white LEDs per fan create clean, consistent illumination for gaming PCs and desktop builds. Black fan frames and white 9-blade impellers provide a sharp high-contrast look.

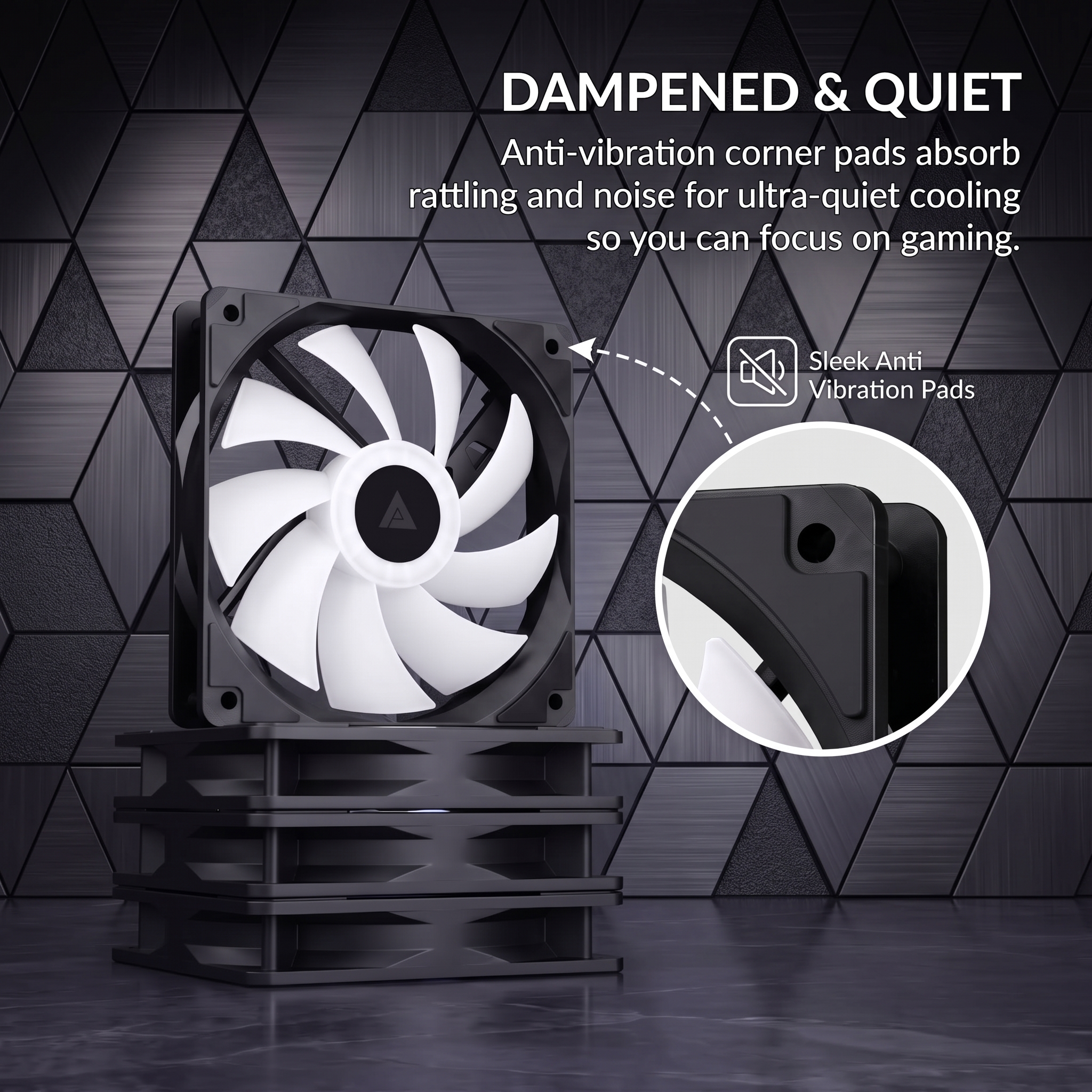

QUIET VIBRATION REDUCED COOLING: Anti-vibration rubber pads at all four corners help reduce case vibration and unwanted operating noise, making these fans ideal for a quieter desktop setup.

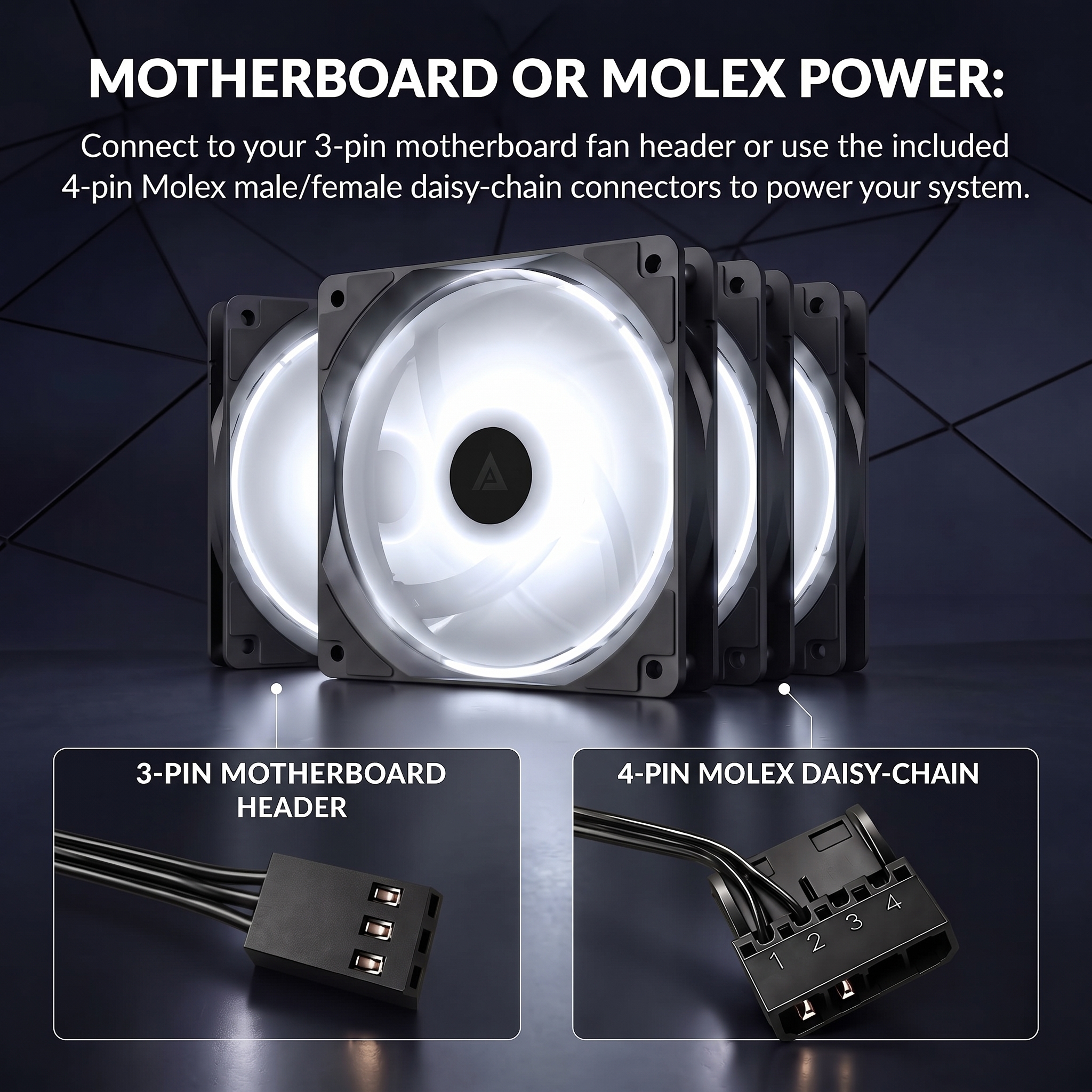

MOTHERBOARD OR MOLEX POWER:
Connect to a compatible 3-pin motherboard fan header or use the included 4-pin Molex male/female daisy-chain connectors. The approximately 600 mm cable offers flexible routing in mid-tower and full-tower cases.

DAISY CHAIN READY: Male and female 4-pin Molex connectors, positioned approximately 100 mm apart, allow convenient connection of multiple fans from a compatible Molex power lead.

RELIABLE DAILY USE: Hydraulic bearings support a rated life of up to 50,000 hours. Each fan runs at 1200 +/- 10% RPM, delivers up to 50 CFM airflow, and has a rated noise level of 20 dBA.

Model No.
CM1012L-WH
Fan Speed
1200 ± 10% RPM
Air Power
12 VDC
Noise Level
20 dBA
Operation Voltage Range
9 VDC ~ 13.5 VDC
Start-up Voltage
9 VDC
Rated Voltage
12 VDC
Rated Current
0.24 A
Lock Rotor Current
0.21 A
Air Flow
50 CFM
Static Air Pressure
0.96mm-H2O
Connector
3-pin Motherboard and 4-pin Molex
Life Expectancy
50,000 Hours
Packing
Retail, 4 pcs/carton
Weight
12.3 lbs/carton
Cu'ft
0.955
