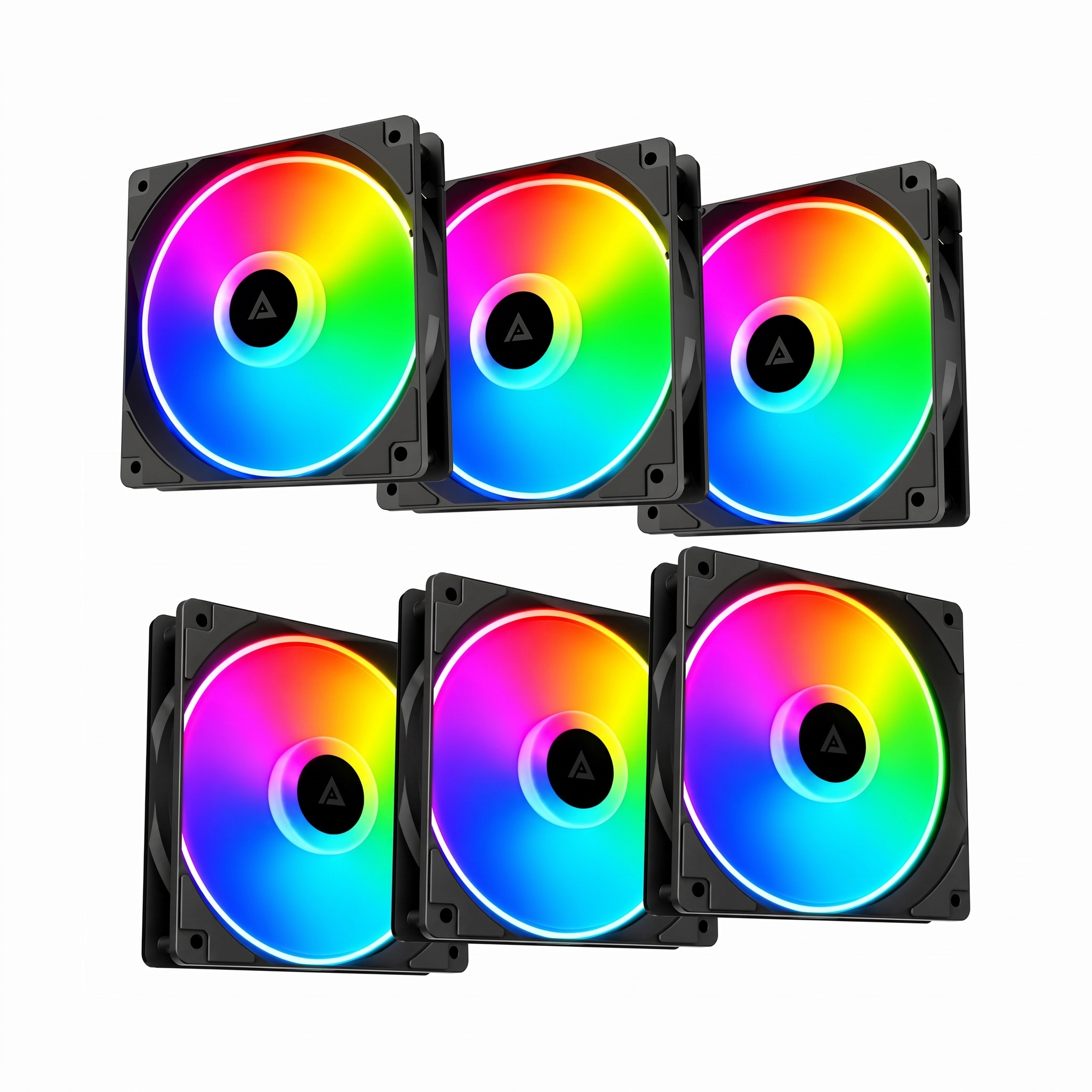

Upgrade your system with the Apevia AE612L-RGB AERO 120mm PWM ARGB Fan 6-Pack. Each fan combines a black frame with translucent white 9-blade fan blades, PWM cooling control, and 5V addressable RGB lighting to deliver a clean, customizable appearance for gaming PCs and workstation builds.The fans operate from 800 to 1800 ±10% RPM and deliver up to 68 CFM of airflow with up to 1.85 mmH₂O of static pressure. Connect the standard 4-pin PWM cable to a compatible motherboard fan header to allow the motherboard to manage fan speed according to its configured temperature settings.Each fan includes 8 ARGB LEDs and a 5V 3-pin ARGB connection for motherboard lighting synchronization. Built-in PWM and ARGB daisy-chain connectors simplify multi-fan installation while helping reduce cable clutter. Hydraulic bearings support quiet, dependable operation for everyday PC cooling.
user manualPWM Cooling Performance: Each 120mm fan operates from 800 to 1800 ±10% RPM through a standard 4-pin PWM connection. Connect the fan to a compatible motherboard PWM header for automatic speed adjustment based on your system’s temperature-control settings.
Balanced Airflow and Static Pressure: Delivers up to 68 CFM of airflow and 1.85 mmH₂O of static pressure to help remove heat from your PC case. Suitable for case ventilation, CPU air coolers, and light-to-moderate radiator cooling applications.
5V ARGB Motherboard Sync: Each fan features 8 addressable RGB LEDs and translucent white 9-blade fan blades for vivid, diffused lighting. Synchronize lighting effects through a compatible 5V 3-pin ARGB motherboard header.*
Daisy-Chain Ready: Integrated 4-pin PWM and 5V 3-pin ARGB male/female pass-through connectors allow multiple fans to be connected in series for cleaner cable management and simplified installation. Each black flat ribbon cable has a 500 mm lead length, with daisy-chain connectors positioned approximately 100 mm apart.
Quiet and Reliable: Hydraulic bearing construction helps provide smooth operation and a rated bearing life of up to 50,000 hours. Operating noise is approximately 16–30 dBA for a balanced combination of cooling performance and quiet operation.
