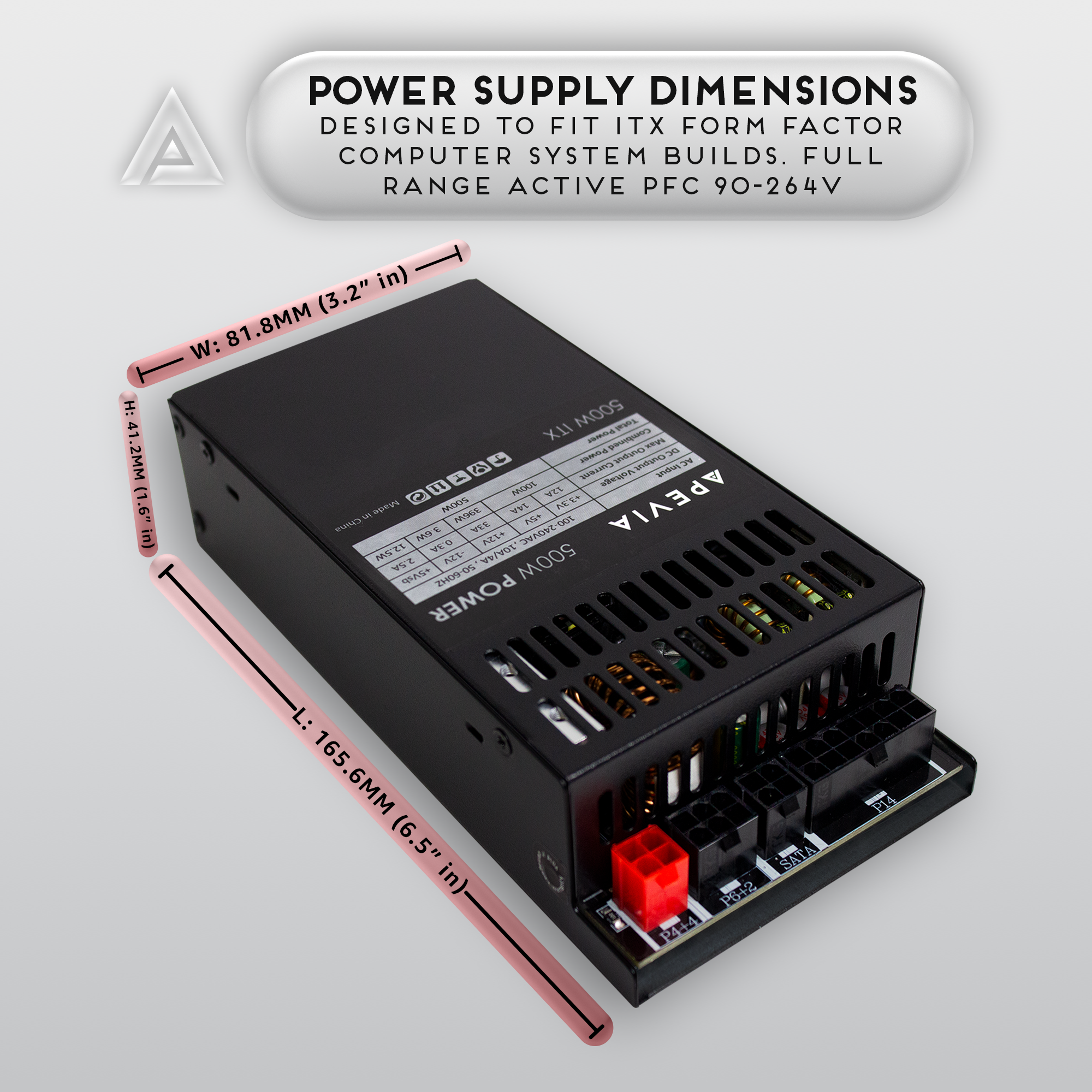

Apevia ITX-PFC500W is a fully modular, full range active PFC (90-265V) 500w power supply. This power supply is a standard-size Mini-ITX / Flex-ATX unit that will fit in any ITX form-factor case. It has enough power output and connectors to run ITX systems up to 500 watts, used for versatile compact computing applications.

• APEVIA ITX-PFC500W Standard 500W ITX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 500W.
• Fully Modular Power Supply Design
• Output: +3.3V@12A, +5V@14A, +12V@33A, -12V@0.3A, +5Vsb@2.5A
• High stability with 5% tolerance of 5V, 3.3V & 12V output
• High quality components and housing
• Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)

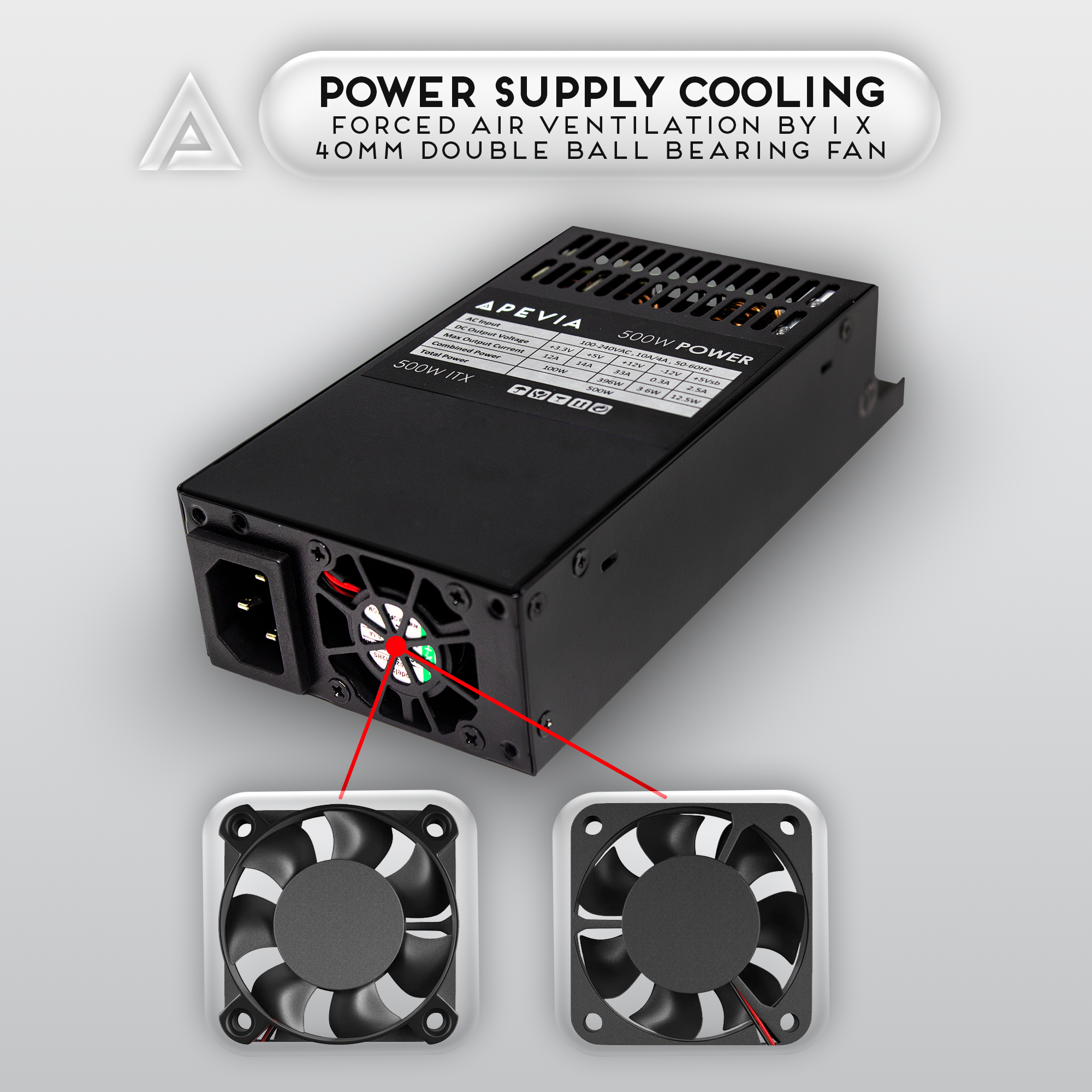

• Cooling: Forced Air Ventilation by 1 x 40mm Double Ball Bearing Fan
• Power cord
• Retail box

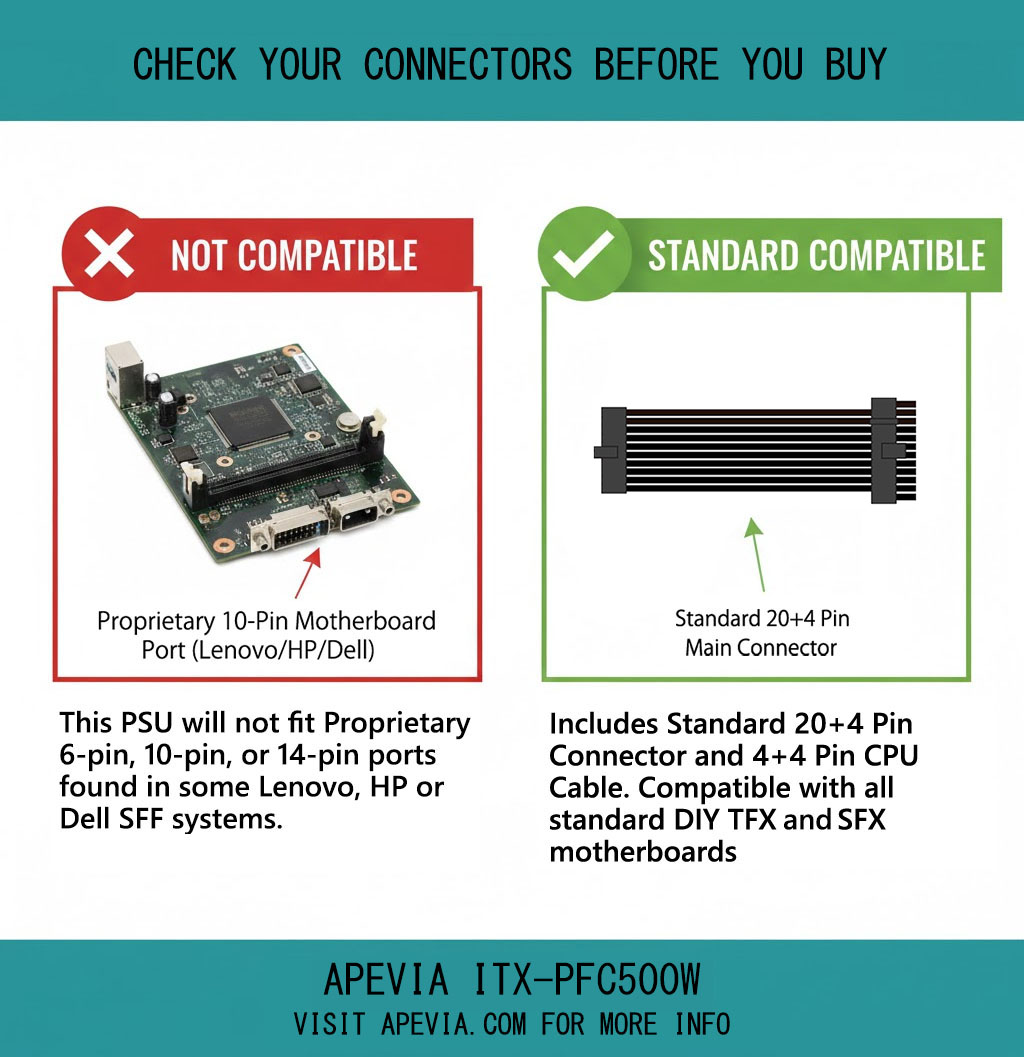

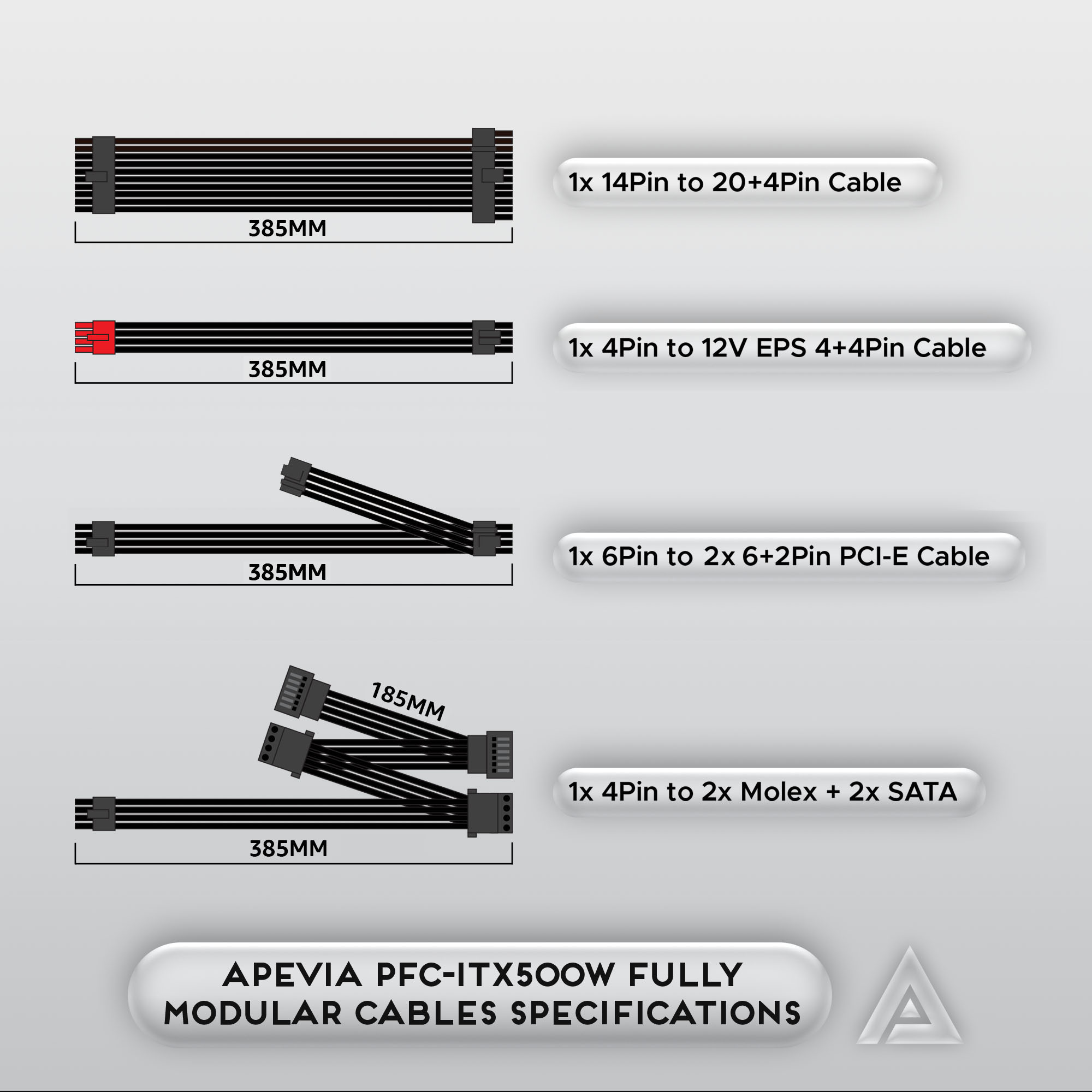

• 1 x 20 + 4 pin main connector can be used for 20 pin or 24 pin
• 1 x ATX12V P4+4pin connector can be used as 12V 8pin or 4pin (Removable by pushing out one of the 4pins)
• 2 x 6+2 PCIE graphics card connector can be used as an 8pin or 6pin (Removable by pushing out the 2pin)
• 2 x SATA connector
• 2 x 4 pin peripheral connector
• IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
